The Work‑Element Data Model: The Missing Link Between Asset Condition and Capital Outcomes
Capital planning rarely fails because organizations lack asset data, funding intent, or delivery capability. It fails because the connection between asset‑driven needs, approved scope, and delivered outcomes is lost as plans move from analysis to execution. When capital needs are aggregated too early into projects, the original drivers (asset condition, lifecycle risk, compliance requirements, and operational priorities) become obscured. Once execution begins, organizations struggle to answer basic questions: what was approved, what was funded, what was delivered, and what outcomes the capital investment actually produced.
The work‑element data model provides the structural layer that preserves this connection. By defining capital needs as discrete work elements tied directly to assets, organizations can maintain traceability from Facility Condition Assessments (FCAs) through initiatives, portfolio planning, project execution, and reporting. This paper defines the work‑element data model and shows how PMWEB can operationalize it as part of an end‑to‑end capital planning lifecycle.
Why Capital Planning Breaks Down Without Work Elements
For most owner organizations, capital planning does not begin with projects. It begins with assets and the growing list of needs, risks, and opportunities associated with them. In practice, this understanding is established through Facility Condition Assessments, which translate observed deficiencies, lifecycle conditions, and risks into potential capital needs.
However, these needs are often captured across spreadsheets, static reports, or disconnected systems. To simplify decision‑making, they are frequently aggregated early into project concepts or high‑level budget requests. While this aggregation makes plans easier to present, it strips away the detail needed to preserve intent. As a result, when execution begins, organizations lose visibility into which asset needs are actually being addressed and how capital spend ties back to original drivers.
Without a unifying data structure connecting planning and delivery, capital planning becomes static and execution becomes reactive. Changes, cost growth, and scope decisions are made without clear reference to the asset‑level needs that justified the investment in the first place.
Defining the Work‑Element Data Model

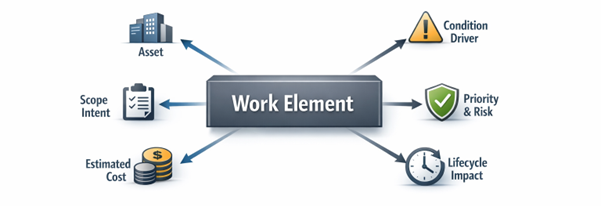

What Is a Work Element?
A work element is a discrete, actionable unit of work tied directly to an asset or facility. It represents a specific response to an identified condition, risk, or lifecycle need, often derived directly from an FCA. Work elements exist before projects are defined and persist through planning, approval, execution, and reporting.
Examples of work elements include lifecycle replacements, capacity upgrades, deferred maintenance items, regulatory compliance actions, or resilience improvements. Each work element carries its own scope intent, estimated cost, priority, and relationship to asset condition.

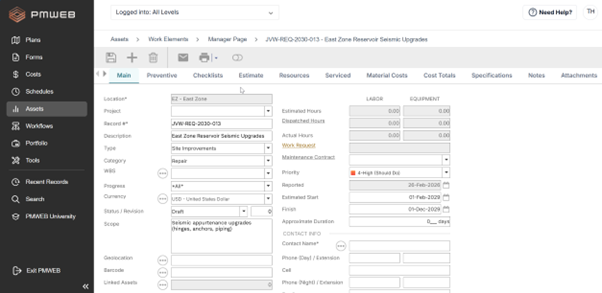

Example Work Element record within PMWEB
Estimate Details within a Work Element

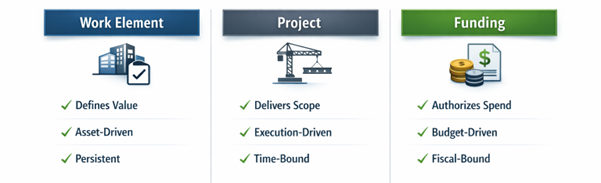

What a Work Element Is Not
A work element is not a project, a funding line item, or a vague backlog entry. It is the “why” and “what” of capital work, linked to an originating asset, and captured at a level that can be estimated, prioritized, bundled, and traced.
Not a project. Projects are delivery containers built to execute a package of work within governance constraints (budget, schedule, stakeholders, procurement strategy). A single project may deliver many work elements, and a single work element may be deferred, split, or combined as the delivery approach evolves, without changing the underlying need it represents.
Not a funding line. Funding lines authorize spend and are typically organized around fiscal structures (programs, departments, bond packages, appropriations). A work element persists even when funding sources change; it maintains traceability to the asset condition, risk, or compliance driver that justified the investment.
Not a vague backlog item. Backlogs often mix ideas, complaints, wish‑lists, and true needs. A work element should be specific enough to answer: (1) what asset it applies to, (2) what will be done, and (3) what outcome or risk reduction is expected so it can be estimated and prioritized consistently.
Not a task list or WBS. A work breakdown structure decomposes an approved scope into execution activities. Work elements exist before that decomposition. They define the scope intent at the asset‑need level; the WBS defines how the project team will deliver the approved work.
Not a contract or bid package. Procurement packages are structured around market strategy and contracting convenience. Work elements can map to one or many contracts, but their purpose is not procurement, it is preserving decision intent and enabling reporting back to the underlying asset outcomes.

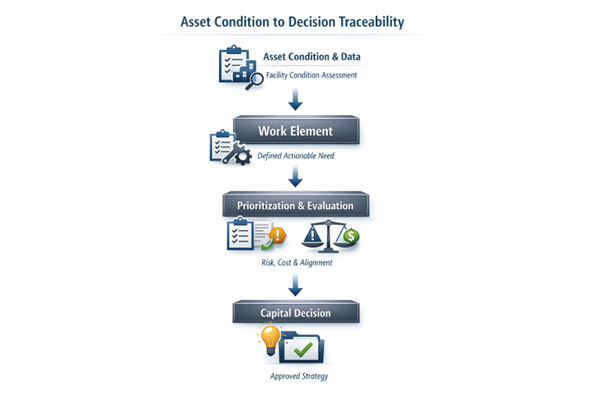

Work Elements as the Bridge Between Assets and Capital Decisions
Facility Condition Assessments translate observed deficiencies and lifecycle needs into work elements that can be evaluated, prioritized, and funded. Instead of static lists, work elements create a repeatable planning inventory grounded in measurable conditions and tied to specific assets.
Because work elements are tied directly to assets, they preserve lineage from condition data to planning assumptions to outcomes. This structure lets organizations refresh priorities as conditions change without losing the connection to the underlying drivers.

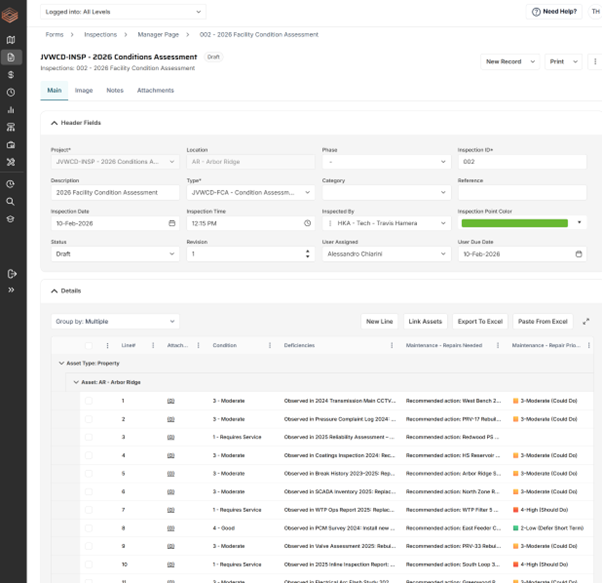

PMWEB FCA Inspection Record

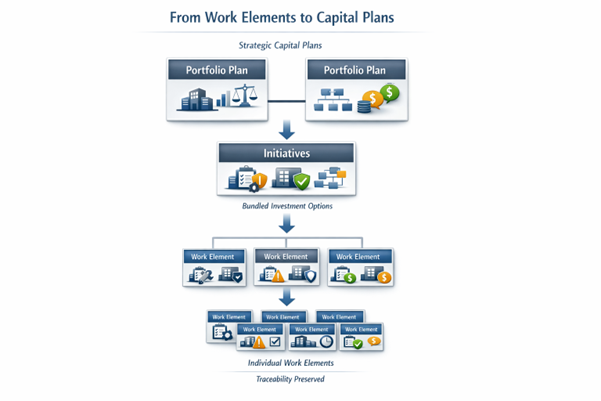

From Thousands of Work Elements to Decision‑Ready Capital Plans
Structuring and Preparing Work Elements
To become decision‑ready inputs to a capital plan, work elements must be collected, structured, estimated, and reviewed. They are evaluated for risk, urgency, cost, and alignment with organizational priorities, then approved for potential fiscal‑year or multi‑year spend.
Bundling Work Elements into Initiatives
Thousands of discrete work elements do not translate directly into strategic decisions. Organizations group related work elements into initiatives—logical bundles that represent coherent investment options. Initiatives may be organized by facility, system, geography, risk class, or funding source.
Initiatives allow leadership to compare alternatives without prematurely committing to project structures. They create a manageable decision space while preserving traceability back to individual asset needs.

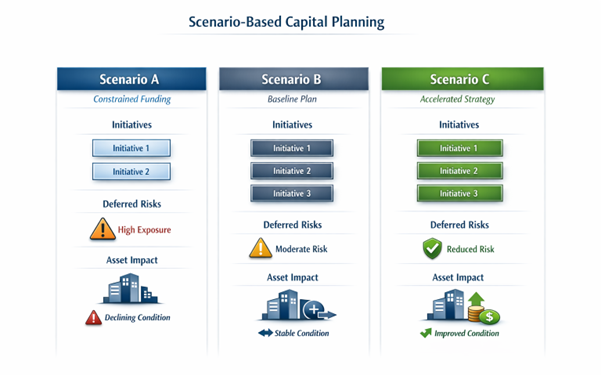

Portfolio Plans and Scenario‑Based Strategy
Portfolio Plans act as the governance layer between asset‑driven needs and execution. Each plan represents a collection of initiatives and their underlying work elements. Multiple plans can be developed to evaluate scenarios, funding options, and trade‑offs.
Scenario planning clarifies not only what fits within a budget, but also the risk and consequence of deferral—what exposure increases, what lifecycle impacts accumulate, and how portfolio health changes as work is accelerated or delayed.
Carrying Work‑Element Intent into Project Execution
Once initiatives and portfolio plans are approved and funded, projects are launched to deliver the authorized scope. The key requirement at this transition is continuity: work‑element scope intent and assumptions should carry forward so delivery remains anchored to the asset needs that justified the investment (detailed further in the PMWEB section below).
Work elements provide the reference point for validating scope and evaluating changes against original priorities.
Reporting Execution Back to Work Elements and Assets
During execution, PMWEB connects schedules, commitments, changes, and actual costs back to projects, approved work elements, and the portfolio plans and initiatives that authorized them. This enables reporting not only at the project level, but back to original planning drivers.
Importantly, this reporting becomes a learning mechanism. Actual costs, schedule performance, and delivered outcomes validate planning assumptions, improve future estimating, and strengthen long‑range capital strategy. Execution outcomes are not the end of the planning process—they are critical inputs to the next cycle.

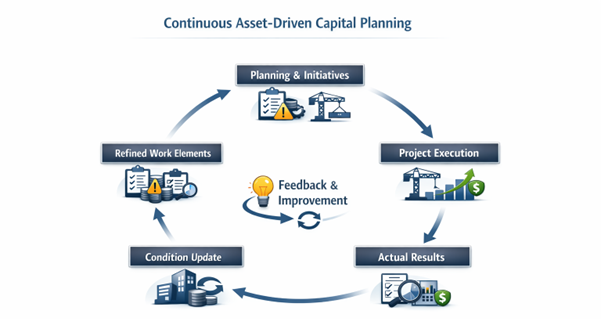

Capital Planning as a Continuous, Asset‑Driven Process
Capital planning is not a one‑time exercise. As assets age and work is completed, condition data must be refreshed so that work elements, initiatives, and scenarios remain aligned to the real portfolio. Work elements persist across planning cycles, providing continuity and institutional knowledge.
By closing the loop between execution and planning, organizations transform capital planning from an annual ritual into a continuous, asset‑driven process that improves decisions year over year.
How PMWEB Operationalizes the Work‑Element Data Model
PMWEB supports an end‑to‑end capital planning lifecycle by preserving intent as decisions move from asset condition to approved investment and, ultimately, delivered outcomes. It does this by providing a persistent, asset‑aware system of record that connects planning, governance, and project execution.
In practice, PMWEB connects work elements to initiatives and portfolio scenarios, then carries approved intent into delivery controls and performance reporting.
Persistent, Asset‑Driven Planning at the Work‑Element Level
A core principle of modern capital planning is that decisions should be made at the level where needs originate: the asset. PMWEB supports this principle by allowing asset condition data to be captured through inspections, assessments, or integrated FCA tools and translated into persistent planning records tied directly to facilities, systems, and components.
Within this structure, work elements function as the atomic unit of planning. Each work element represents a defined, actionable response to an observed condition, lifecycle risk, or compliance requirement. Scope intent, estimated cost, priority, and lifecycle impact are retained as part of the planning record, ensuring that decision drivers remain visible as plans evolve.
Unlike spreadsheet‑based or report‑centric planning approaches, work elements in PMWEB persist across planning cycles. They are refined, deferred, bundled, or executed, but not recreated. This persistence preserves institutional knowledge and enables planning to function as a continuous process rather than an annual reset.
How Work Elements Map to PMWEB Structures
| Work‑Element Concept | PMWeb Native Support |
|---|---|
| Asset hierarchy | PMWEB location-based Assets modules |
| FCA findings | PMWEB Inspections / Deficiencies / Integration |
| Work element | PMWEB Work Order records configured with an asset‑driven scope |
| Scope intent | Scope fields, custom fields, estimate details |
| Prioritization | Custom reporting, scoring/checklists, filters, dashboards |
| Initiatives | Initiatives module (bundling, estimating, schedules, scoring/ranking, custom fields) |
| Portfolio plans | Portfolio Plans module (scenarios, funding distribution, planning datasets, reporting) |
Scaling Decisions Through Initiatives and Portfolio Scenarios
Modern capital planning requires the ability to evaluate thousands of asset‑level needs without overwhelming decision‑makers. PMWEB addresses this by providing a governance layer above work elements, allowing related needs to be grouped into initiatives and evaluated within portfolio plans.
Initiatives serve as analytical constructs, bundling investment options that represent coherent strategies without prematurely defining project scope. Leadership can compare initiative sets across multiple portfolio scenarios, evaluating tradeoffs between funding levels, risk exposure, asset impact, and long‑term portfolio health.
Because initiatives and portfolios in PMWEB remain traceable to their underlying work elements, scenario‑based planning becomes both transparent and defensible. Decision‑makers are no longer choosing between abstract budget totals; they are evaluating the real consequences of acceleration, deferral, or under‑investment at the asset level.
Carrying Planning Intent into Project Execution
One of the most common breakdowns in capital planning occurs at the transition from approval to execution. PMWEB addresses this directly by maintaining continuity between approved planning decisions and downstream delivery controls.
Once initiatives and portfolio plans are approved and funded, PMWEB transitions work‑element intent directly into executable project structures. Approved scope, baseline estimates, schedules, and procurement workflows are established without re‑entry or reinterpretation. Projects become delivery mechanisms for approved planning intent, not opportunities to redefine it.
Throughout execution, PMWEB ties commitments, change events, schedules, and actual costs back to the work elements and assets that justified the investment. This preserves a continuous decision thread and ensures that scope changes, cost growth, or deferrals can be evaluated in the context of original asset‑driven priorities.
Closing the Loop: Outcomes as Inputs to the Next Planning Cycle
Modern capital planning treats execution outcomes as feedback, not an endpoint. PMWEB enables this feedback loop by reporting actual performance back through initiatives, work elements, and associated assets.
Actual costs, schedules, and delivered outcomes inform future planning assumptions, improve estimating accuracy, and refine prioritization logic. Completed work elements update asset condition; deferred elements are re‑evaluated with refreshed data. Over time, this closed‑loop process strengthens decision quality and enables organizations to continuously adapt capital strategy based on measured results rather than assumptions.
Example: From FCA Findings to Executed Work
A Facility Condition Assessment identifies multiple deficiencies across HVAC assets within a hospital campus. Each deficiency is captured against its associated asset within PMWEB, either through direct inspection workflows or integrated FCA data.
Rather than immediately aggregating these needs into a project, each deficiency is translated into a discrete work element, defined within PMWEB as an asset‑linked planning record. Each work element carries its own scope intent (e.g., replace air handling unit), estimated cost, lifecycle driver, and risk priority.
These work elements persist as planning inputs and are evaluated alongside others during portfolio development. PMWEB enables planners to group related work elements into initiatives, such as “Critical HVAC Renewals”, without losing traceability back to the originating assets.
Once an initiative is approved and funded, PMWEB transitions the approved work elements directly into executable project structures via the initiatives. Approved budgets, baseline schedules, and procurement workflows are established without re‑entry, preserving continuity between what was planned and what is delivered.
As execution proceeds, commitments, changes, and actual costs are reported back to the original work elements and assets—providing leadership with visibility into not only project performance, but which asset needs were actually addressed

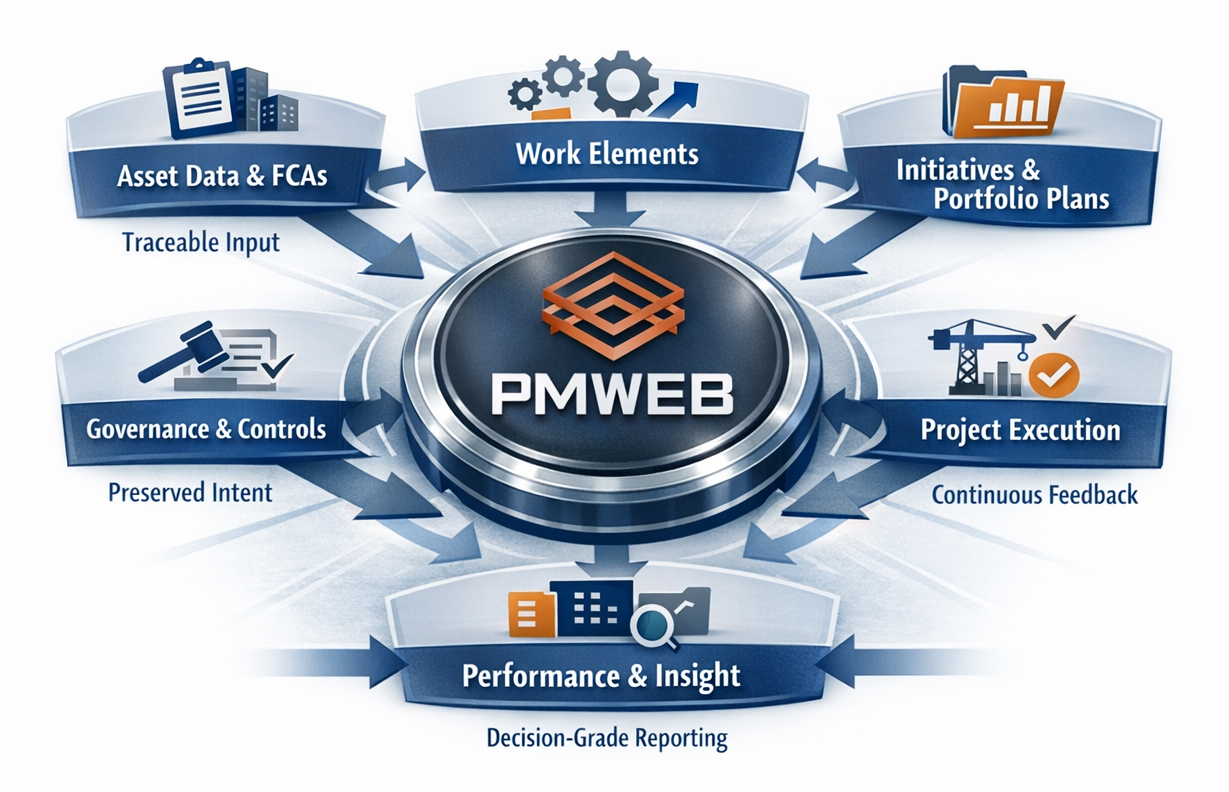

PMWEB as the Operating Backbone for Modern Capital Planning
By aligning asset condition data, work elements, initiatives, portfolio scenarios, and project execution within a single platform, PMWEB operationalizes the principles of modern capital planning at enterprise scale. Planning becomes continuous rather than episodic. Decisions remain asset‑driven rather than budget‑driven. Outcomes inform strategy rather than disappearing into reporting silos.
PMWEB does not introduce a new planning philosophy. It provides the system required to execute one. When paired with appropriate governance and advisory alignment, PMWEB enables owner organizations to implement a modern capital planning operating model that is traceable, defensible, and continuously improving.
Where HKA Tech Adds Value
Technology alone does not solve capital planning challenges. While platforms like PMWEB provide the structural foundation for modern, asset‑driven planning, realizing their full value requires deliberate alignment between strategy, governance, data, and execution. HKA Tech helps owner organizations design and implement this alignment, ensuring that the work‑element data model functions as an operating discipline rather than a conceptual overlay.
Translating Asset Condition into Decision‑Ready Work Elements
A common failure point in capital planning occurs before decisions are ever made, when asset condition data is collected without a clear path to action. HKA Tech helps organizations design Facility Condition Assessment strategies that explicitly support planning, ensuring that deficiencies, risks, and lifecycle needs are translated into well‑structured, decision‑ready work elements.
This includes defining how FCA findings are scoped, estimated, classified, and prioritized so they can function as persistent planning inputs rather than static reports. The result is a planning inventory that leadership can actually govern, evaluate, and refresh over time.
Defining Governance That Preserves Intent
Modern capital planning requires governance models that protect intent as decisions scale from individual needs to enterprise portfolios. HKA Tech works with owner organizations to define where and how aggregation occurs by establishing rules for bundling work elements into initiatives, developing portfolio scenarios, and approving capital strategies without prematurely locking in project scope.
This governance layer is critical. Without it, organizations fall back into project‑centric planning and lose the asset‑level lineage the work‑element model is designed to preserve.
Implementing PMWEB as an Operating Model, not a Tool
PMWEB can support a wide range of workflows, but configuration alone does not determine outcomes. HKA Tech helps organizations implement PMWEB in a way that reflects how capital decisions are meant to be made and revisited over time.
This includes aligning PMWEB structures to asset hierarchies, work elements, initiatives, and portfolios; defining decision points and approvals; and ensuring that planning data flows cleanly into execution without re‑entry or reinterpretation. The objective is not system compliance, but decision continuity, from asset condition to approved investment to delivered outcomes.
Closing the Loop Between Execution and Planning
One of the defining attributes of modern capital planning is the use of execution outcomes as feedback. HKA Tech helps organizations operationalize this feedback loop by defining how actual costs, schedules, and delivered scope inform future planning assumptions, prioritization logic, and capital strategies.
Rather than treating execution as the end of the process, HKA Tech enables organizations to institutionalize learning, updating asset condition, refining work elements, and continuously improving planning accuracy and defensibility.
Enabling Sustainable Change
Ultimately, the value HKA Tech brings is sustainability. By aligning people, processes, data, and technology, HKA Tech helps owner organizations move beyond episodic planning cycles toward a durable, asset‑driven capital planning operating model. The work‑element data model becomes embedded in how decisions are made, not dependent on individual champions or one‑time implementations.
Conclusion: Planning at the Level Where Decisions Matter
Projects deliver work, but work elements define value. A work‑element data model preserves the connection between asset condition, capital decisions, and delivered outcomes. When paired with the right platform and advisory approach, it enables modern capital planning that is traceable, defensible, and continuously improving
